120W RGBW 4in1 COB Zoom Par Can Light With RGBW for Church Theater Wedding
Λεπτομέρειες:
| Τόπος καταγωγής: | Κίνα |
| Μάρκα: | Intuiit |
| Πιστοποίηση: | CE&Rohs |
| Αριθμό μοντέλου: | Yx-022 |
Πληρωμής & Αποστολής Όροι:
| Ποσότητα παραγγελίας min: | Διαπραγματεύσιμος |
|---|---|
| Συσκευασία λεπτομέρειες: | Καρτόνι, θήκη πτήσης |
| Χρόνος παράδοσης: | 30 έως 35 ημέρες |
| Όροι πληρωμής: | T/T |
| Δυνατότητα προσφοράς: | 10000 τμχ/μήνα |
|
Λεπτομερής ενημέρωση |
|||
| Μίξη χρώματος: | Rgbw | Πηγή φωτός: | 4--1 RGBW |
|---|---|---|---|
| Ισχύς λαμπτήρα: | 120W | Τάση εισόδου: | AC100V-240V |
| Ποσοστό IP: | IP20 | Διοχετεύστε το αριθ.: | 4,6,11CH |
Περιγραφή προϊόντων
The YX-022 is a high-intensity COB LED wash par light, engineered for professional applications including wedding ceremonies, stage productions, and live concerts. It is equipped with a powerful 120W RGBW COB LED that delivers vibrant, full-spectrum color mixing for dynamic and rich lighting performances.

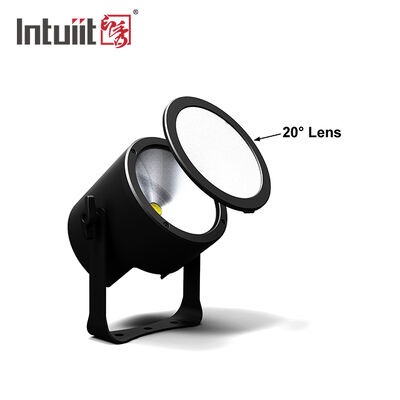

Designed with portability and durability in mind, the fixture features a compact and lightweight housing constructed from custom-engineered plastic, ensuring easy setup and transportation. Its optical system integrates a 70-degree reflector cup and a Fresnel lens to concentrate and maximize light output, producing a bright, uniform wash.
Offering versatile control capabilities, the YX-022 supports multiple operating modes: Master/Slave synchronization, sound activation, built-in programs, automatic operation, and DMX512 control. This flexibility enables seamless integration into various lighting environments and allows for music-synchronized or pre-programmed dynamic effects.
Renowned in the stage lighting market, the YX-022 stands out for its adaptability, high luminous efficacy, and dependable operation. It is the go-to solution for lighting professionals seeking superior color blending and versatile performance across diverse event scenarios.
Specification
| Item number | YX-022 | |||||
| Product Dimension | 265*250*195 mm | |||||
| Inner box | 345*245*270 mm | |||||
| Outer box | 515*370*575 mm(4pcs/ctn) | |||||
| Weight | N.W 3kg /G.W 14kg | |||||
| Connector | DMX in/out,power in/out | |||||
| Power Voltage | AC100V ～ 240V,60/50Hz | |||||
| Power Consumption | 130W | 130W@110V | 125W@240V | Power factor | 1 | |
| Current | 1.31A@110V | 0.578 A@240V | ||||
| Power linking | 9pcs@110V | 22pcs@240V | ||||
| LED | 4-IN-1 RGBW | Driver current | 1.4A | |||
| Dimming | 0-100%(14-bit) | Strobe | 0-20Hz | |||
| Beam angle | 67degree | Max Lumen | 3276LM | |||
| DMX channel | 4,6,11CHs | |||||
| IP | IP20 | |||||
| Working Tempreture | -20 ～ +45℃ | |||||
| Lux Sheet | Distance | R(LUX) | G(LUX) | B(LUX) | W(LUX) | ALL(LUX) |
| 1(m) | 398 | 927 | 259 | 1072 | 2144 | |
| 2(m) | 113 | 250 | 71 | 290 | 660 | |
| 3(m) | 58 | 131 | 36 | 150 | 344 | |
| 4(m) | 37 | 78 | 22 | 90 | 205 | |
| 5(m) | 25 | 53 | 15 | 60 | 136 | |

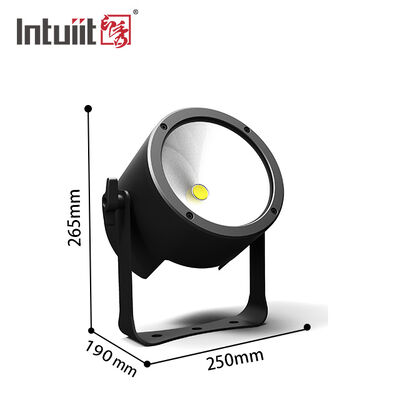

Dimension sheet:
